150-UC-23 : H Channel (150mm) Galvanised Steel Middle Joiner Retaining Wall Post
Introducing the Heavy Duty Series, H Channel 150mm Galvanised Steel Middle Joiner Post (150-UC-23), the ideal solution for supporting the straight middle panels of your structural retaining wall projects. This 150-UC (100mm Universal Column) post is long-lasting and compatible with any of our heavy duty 100mm concrete sleepers, or the super heavy duty 120mm thick concrete sleepers.
This steel post, made of hot-rolled steel and hot-dipped galvanised for long-term protection against weather, fire, and corrosion, is also manufactured to Australian standards AS/NZS 4680.
Weighing in at approximately 23.4 kg per metre, the 150mm H Channel comes in 16 different lengths, ranging from 900mm all the way up to 6 meters in length.
Alternatively, if you’re looking for the 150-UC-30, 150-UC-37 or the 200-UC-46 premium steel range, then we can organise a custom order for you. Please contact our support team to enquire, or call us on 0410 818 242.
If you’re looking for steel posts that fit our 80mm standard strength concrete sleepers, then please see our 100mm width steel posts range.
Price range: $74.25 through $495.00 each inc. GST
Obligation Free Quote
No payment needed at checkout.
Trade Pricing Available
Simply submit ABN at checkout.
South East Yard (Pakenham)
28 Meadow Parade, Pakenham VIC 3810
Pickup Hours: Mon-Fri: 7:30 AM - 3:45 PM (Strict)
West Yard (Tottenham)
423 Somerville Rd, Tottenham VIC 3012
Pickup Hours: Mon-Fri: 8:00 AM - 3:15 PM (Strict)
Select your preferred pickup yard during the quote checkout process. No payment required today.
Every concrete sleeper comes with an industry-leading 25-year warranty.
Visit our Warranty Page and Terms of Sale for full information.
Tech specs
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material | Hot Dipped Galvanised Steel |
| Weight KG-M | 23.4 kg/m |
| Overall Height | 152.0 mm |
| Flange Width | 152.0 mm |
| Flange Thickness | 6.8mm |
| Web Thickness | 6.1mm |
| Root Radius | 8.9mm |
| Depth Between Flanges | 139mm |
Materials
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material | Hot Dipped Galvanised Steel |
| Weight KG-M | 23.4 kg/m |
| Overall Height | 152.0 mm |
| Flange Width | 152.0 mm |
| Flange Thickness | 6.8mm |
| Web Thickness | 6.1mm |
| Root Radius | 8.9mm |
| Depth Between Flanges | 139mm |
Features
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material | Hot Dipped Galvanised Steel |
| Weight KG-M | 23.4 kg/m |
| Overall Height | 152.0 mm |
| Flange Width | 152.0 mm |
| Flange Thickness | 6.8mm |
| Web Thickness | 6.1mm |
| Root Radius | 8.9mm |
| Depth Between Flanges | 139mm |

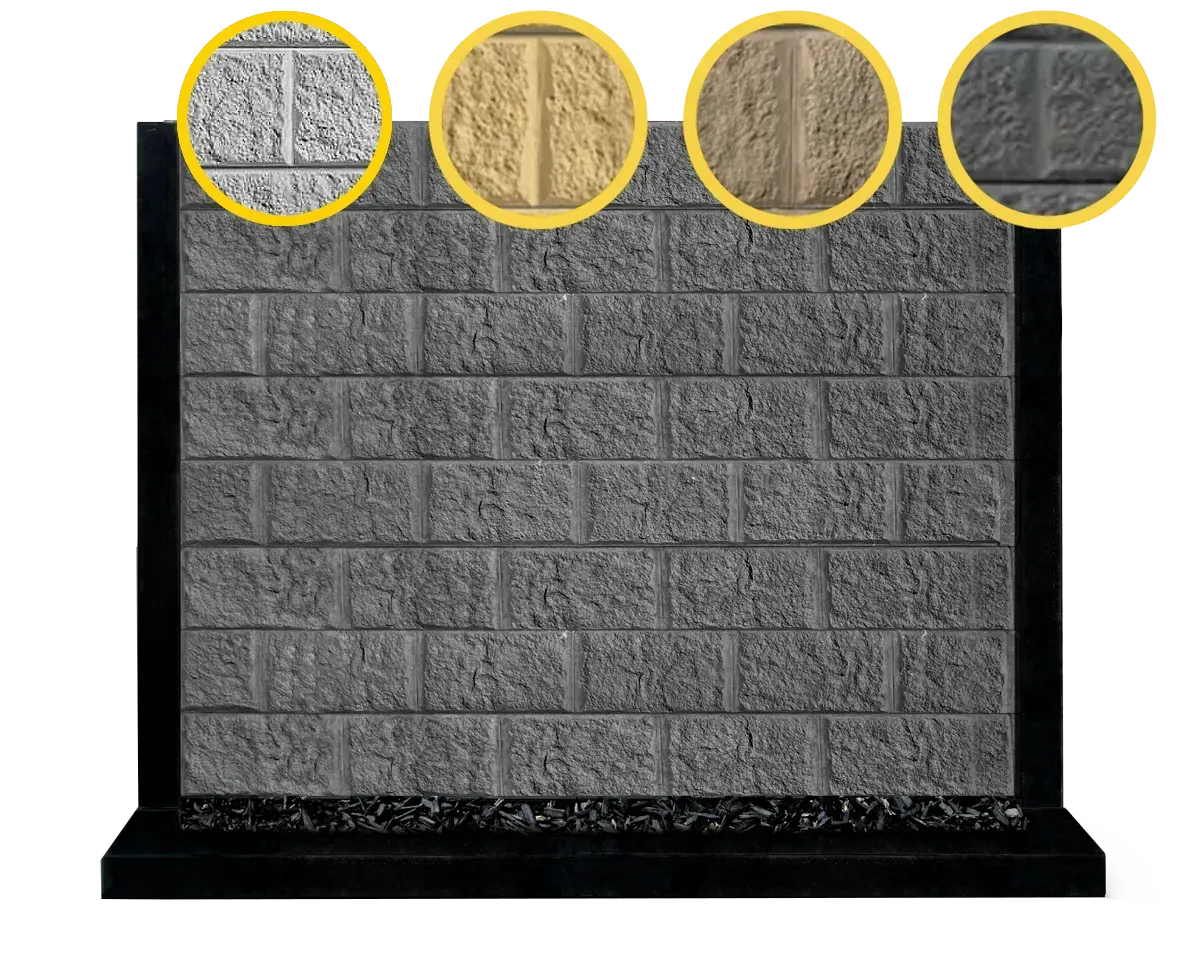

The Arizona Block-face Concrete Sleepers – 40mpa 2x N12 Bars (All Sizes & Colours)
