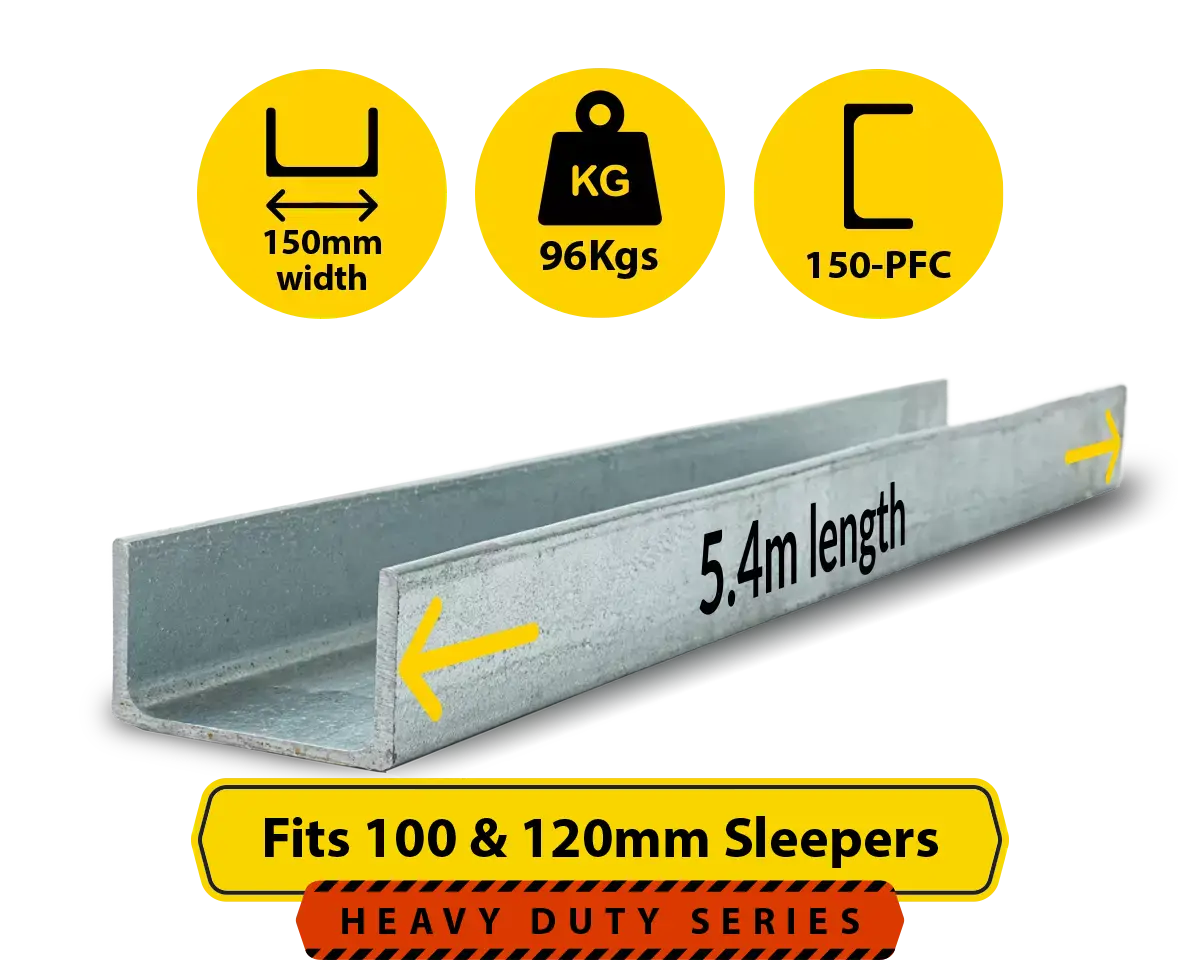

5400mm (5.4m) Heavy Duty C-Channel End Panel Galvanised Steel Post (150mm Width – Fits 100mm & 150mm Sleepers)
Introducing the 5400mm (5.4m) Heavy Duty Series C-Channel (150-PCF) End Panel Galvanised Steel Posts, the ideal solution for supporting the end panels of your concrete sleeper retaining wall. This 150-PCF (150mm Parallel Flange Channel) post is long-lasting and compatible with any of our heavy duty 100mm concrete sleepers, or the super heavy duty 120mm thick concrete sleepers.
Features:
- Made of hot-rolled steel and hot-dipped galvanised (zinc)
- Long-term protection against weather, fire, and corrosion
- Manufactured to Australian standards AS/NZS 4680
- Weighing in at approximately 17.7 kg per metre
- It also comes in 15 different lengths of lengths up to 6 meters
$386.10 each inc. GST
993 in stock
Obligation Free Quote
No payment needed at checkout.
Trade Pricing Available
Simply submit ABN at checkout.
South East Yard (Pakenham)
28 Meadow Parade, Pakenham VIC 3810
Pickup Hours: Mon-Fri: 7:30 AM - 3:45 PM (Strict)
West Yard (Tottenham)
423 Somerville Rd, Tottenham VIC 3012
Pickup Hours: Mon-Fri: 8:00 AM - 3:15 PM (Strict)
Select your preferred pickup yard during the quote checkout process. No payment required today.
Every concrete sleeper comes with an industry-leading 25-year warranty.
Visit our Warranty Page and Terms of Sale for full information.
Tech specs
Specification
| Weight | 96 kg |
|---|---|
| Dimensions | 5400 × 75 × 150 mm |
| Material | Hot Dipped Galvanised Steel |
| Steel Width | 150mm |
| Steel Length | 5.4m |
| Steel Type | C-Channel (PFC) |
| Weight KG-M | 17.7 kg/m |
| Depth (Overall Height) | 150mm |
| Flange Width | 75mm |
| Flange Thickness | 9.5mm |
| Web Thickness | 6.0mm |
| Root Radius | 10.0mm |
| Depth Between Flanges | 131mm |
| Moment of Inertia - XX | 8.34 million mm**4 |
| Moment of Inertia - YY | 1.29 million mm**4 |
Materials
| Weight | 96 kg |
|---|---|
| Dimensions | 5400 × 75 × 150 mm |
| Material | Hot Dipped Galvanised Steel |
| Steel Width | 150mm |
| Steel Length | 5.4m |
| Steel Type | C-Channel (PFC) |
| Weight KG-M | 17.7 kg/m |
| Depth (Overall Height) | 150mm |
| Flange Width | 75mm |
| Flange Thickness | 9.5mm |
| Web Thickness | 6.0mm |
| Root Radius | 10.0mm |
| Depth Between Flanges | 131mm |
| Moment of Inertia - XX | 8.34 million mm**4 |
| Moment of Inertia - YY | 1.29 million mm**4 |
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
This range also comes in the super heavy-duty 150mm thickness series, which are ideal for 100mm and 120mm thick concrete sleepers.
