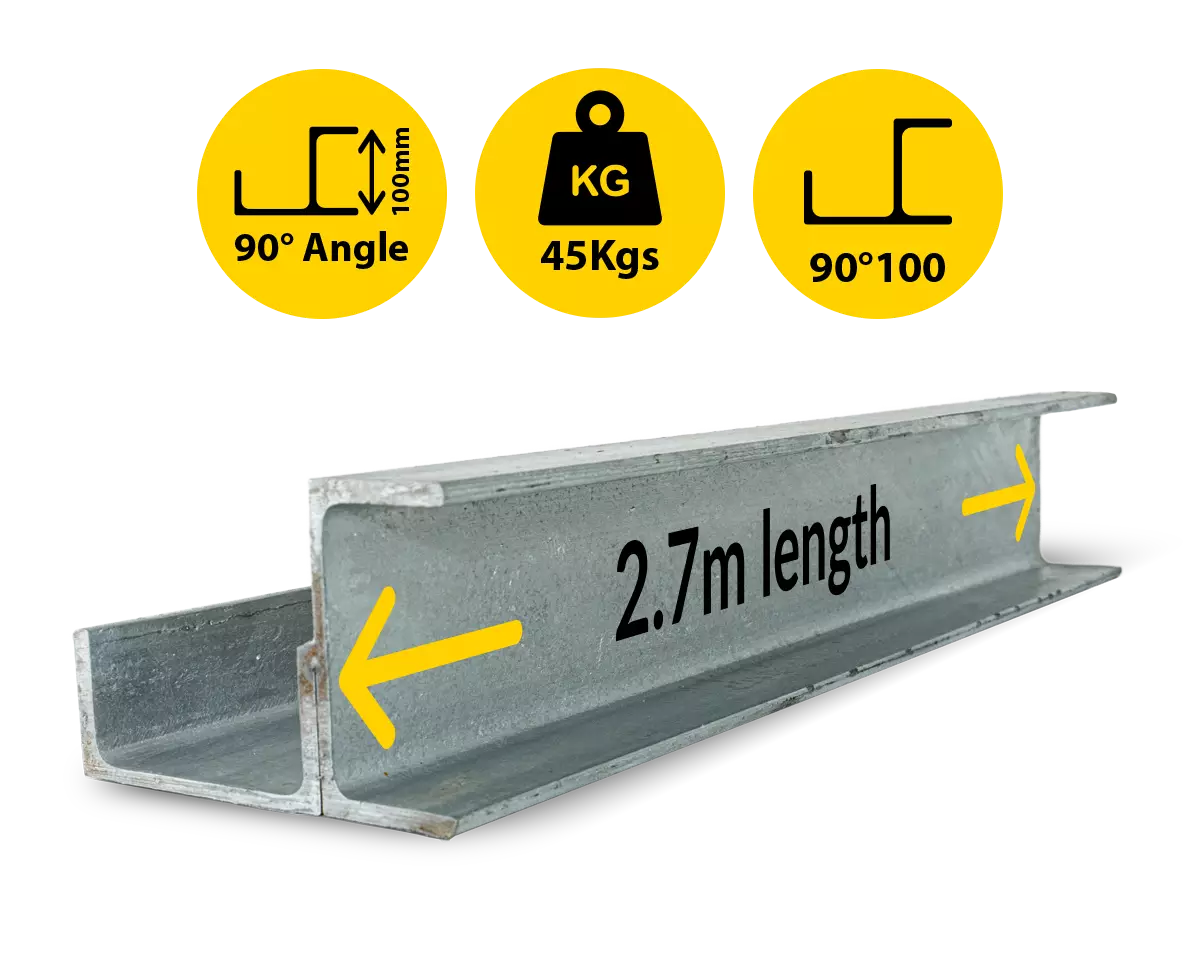

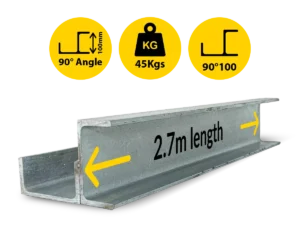

2700mm (2.7m) 90° Galvanised Steel Right Angle Post (100mm Width – Fits 80mm Sleepers)
Introducing the 2700mm (2.7m) 90° Right Angle Corner Galvanised Steel Post (100mm) — manufactured by welding two 100-PFC posts (100mm Parallel Flange Channel) — this steel post is ideal for hard 90° corners of your concrete sleeper retaining wall. This 100mm 90° Galvanised Steel post is compatible with any of our 80mm thick concrete sleepers.
Features:
- Made of hot-rolled steel and hot-dipped galvanised (zinc)
- Long-term protection against weather, fire, and corrosion
- Manufactured to Australian standards AS/NZS 4680
- Weighing in at approximately 16.66 kg per metre
- It also comes in 11 different lengths of lengths up to 3.9 meters
$234.33 each inc. GST
986 in stock
Obligation Free Quote
No payment needed at checkout.
Trade Pricing Available
Simply submit ABN at checkout.
South East Yard (Pakenham)
28 Meadow Parade, Pakenham VIC 3810
Pickup Hours: Mon-Fri: 7:30 AM - 3:45 PM (Strict)
West Yard (Tottenham)
423 Somerville Rd, Tottenham VIC 3012
Pickup Hours: Mon-Fri: 8:00 AM - 3:15 PM (Strict)
Select your preferred pickup yard during the quote checkout process. No payment required today.
Every concrete sleeper comes with an industry-leading 25-year warranty.
Visit our Warranty Page and Terms of Sale for full information.
Tech specs
Specification
| Weight | 44.98 kg |
|---|---|
| Dimensions | 2700 × 50 × 100 mm |
| Material | Hot Dipped Galvanised Steel |
| Steel Width | 100mm |
| Steel Length | 2.7m |
| Steel Type | 90° |
| Weight KG-M | 16.66 kg/m |
| Depth (Overall Height) | 100mm |
| Flange Width | 50mm |
| Flange Thickness | 6.7mm |
| Web Thickness | 4.2mm |
| Root Radius | 8mm |
| Depth Between Flanges | 86.6mm |
Materials
| Weight | 44.98 kg |
|---|---|
| Dimensions | 2700 × 50 × 100 mm |
| Material | Hot Dipped Galvanised Steel |
| Steel Width | 100mm |
| Steel Length | 2.7m |
| Steel Type | 90° |
| Weight KG-M | 16.66 kg/m |
| Depth (Overall Height) | 100mm |
| Flange Width | 50mm |
| Flange Thickness | 6.7mm |
| Web Thickness | 4.2mm |
| Root Radius | 8mm |
| Depth Between Flanges | 86.6mm |
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
This range also comes in the super heavy-duty 150mm thickness series, ideal for 100mm and 120mm thick concrete sleepers.
